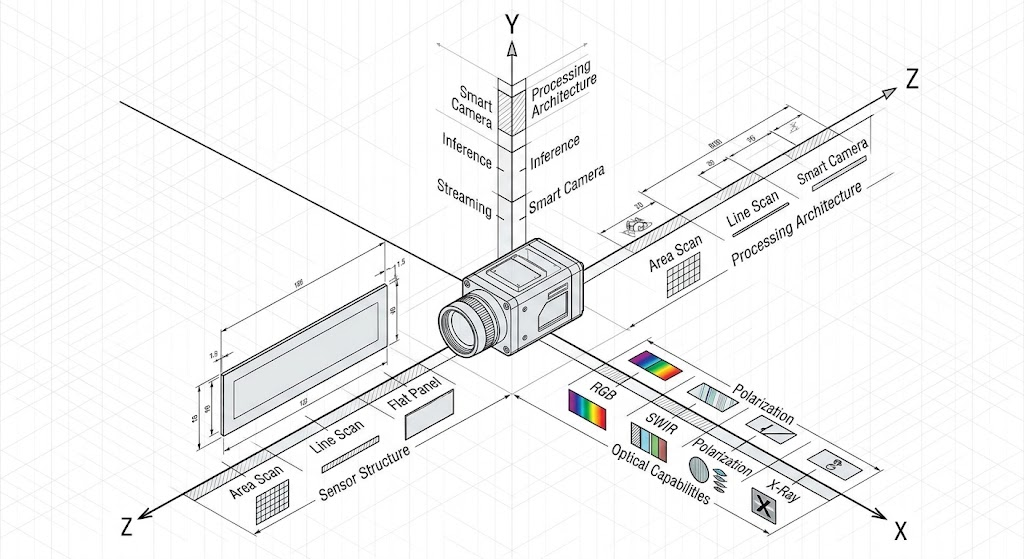

When starting an industrial quality control project and opening the hardware catalog, you are bombarded with terms: 'Should we use an Inference Camera or SWIR? Or Line Scan X-Ray?' These questions are technically comparing apples to oranges. Because in the industrial vision world, there is no single 'camera type'. A camera is defined on three completely different axes based on what it sees (optical/X-Ray spectrum), where it processes the data (system architecture), and how it captures the image (sensor structure). To prevent budgets from being wasted due to incorrect hardware selection, we bring together industrial cameras ranging from visible light to X-Ray frequencies on a comprehensive architectural map across all their dimensions.
1. Category: What the Camera Can See (Optical, Spectral, and X-Ray Classification) This dimension defines which wavelength or energy level of photons the camera is sensitive to. This is the layer that determines whether you will see the object's surface color, chemical composition, molecular stress, or the internal structure of the material.
RGB and Monochrome Cameras (Visible Light - 400–700 nm): This is the spectrum the human eye sees. It is used in standard part inspections having shape, size, presence/absence, and distinct color contrast.
SWIR and NIR Cameras (Infrared - 900–1700 nm): Sees the molecular absorption band beyond visible light. It is used for sorting plastic types, seeing liquids behind packaging, or detecting internal rot in food.
Hyperspectral Cameras (Chemical Spectrum): Extracts the direct chemical map of the object (fat, protein, moisture, etc.) by recording hundreds of narrow wavelength bands for each pixel.
Polarization Cameras (Angle of Light Vibration): Measures the angle of incidence and degree of polarization (DoLP/AoLP) of light. It detects internal stresses (stress points) in transparent glass/plastics and shiny surface reflections.
Thermal Cameras (LWIR - 8,000–14,000 nm): Measures the heat energy emitted from the surface. It is used in inspecting weld quality, electrical panels, and internal material casting voids.
X-Ray and Tomography Systems (Radiographic Imaging - NDT): The high-energy electromagnetic spectrum where photons do not stay on the surface but directly penetrate into the material. It non-destructively (NDT) reveals hidden defects inside opaque metals, aluminum castings (porosity), under-BGA chip soldering (voiding), and closed packaging that optical and SWIR cameras cannot penetrate.
2. Category: Where the Data is Processed (Processing Architecture) This dimension defines where the brain center of the camera is. This architecture determines where the pixel data obtained from the sensor will turn into a decision.
Standard / Streaming Cameras: There is no advanced processor inside the camera. It streams the raw image it receives from the sensor (or X-Ray Flat Panel Detector) directly to an Industrial PC (IPC) via GigE, USB3, CoaXPress, or Camera Link cables. All image processing and AI/Deep Learning models run on this external computer.
Inference Cameras (Edge AI Cameras): An embedded NPU/GPU or AI chip is located within the camera's housing. The deep learning model (YOLO, Anomaly Detection, etc.) runs directly inside the camera. It does not send massive video streams to the outside world, but only 'Defective/Good' text data within milliseconds.
Smart Cameras: Compact systems that house a microprocessor and rule-based software (OpenCV, Halcon, etc.) within themselves. They generally solve barcode reading, presence/absence checks, and simple dimension measurements without the need for an external computer.
3. Category: How the Image is Captured (Sensor and Scanning Structure) This dimension defines the camera's synchronization format with physical movement and the mechanical line.
Area Scan Cameras (Area Scanning): Classic square/rectangular matrix sensors. It takes a still photo when the camera or part momentarily stops.
Line Scan Cameras (Line Scanning): Its sensor consists of a single line (e.g., 8192x1 pixels). It creates an infinite canvas image via encoder synchronization on continuously flowing lines like paper, textiles, sheet metal rolls, or constantly moving X-Ray conveyors.
Flat Panel Detectors (X-Ray Sensors): Special scintillator-based panel sensors that convert X-Ray photons into visible light and then into digital electrical signals.
Event-Based Cameras (Neuromorphic): Does not capture frames. It only triggers and records light changes in the pixels at the microsecond level. Used in ultra-high-speed motion inspections.
3D Cameras / Profilometers: Sensors that produce Point Clouds by capturing not just the X-Y coordinates of the surface, but also depth (Z) data.

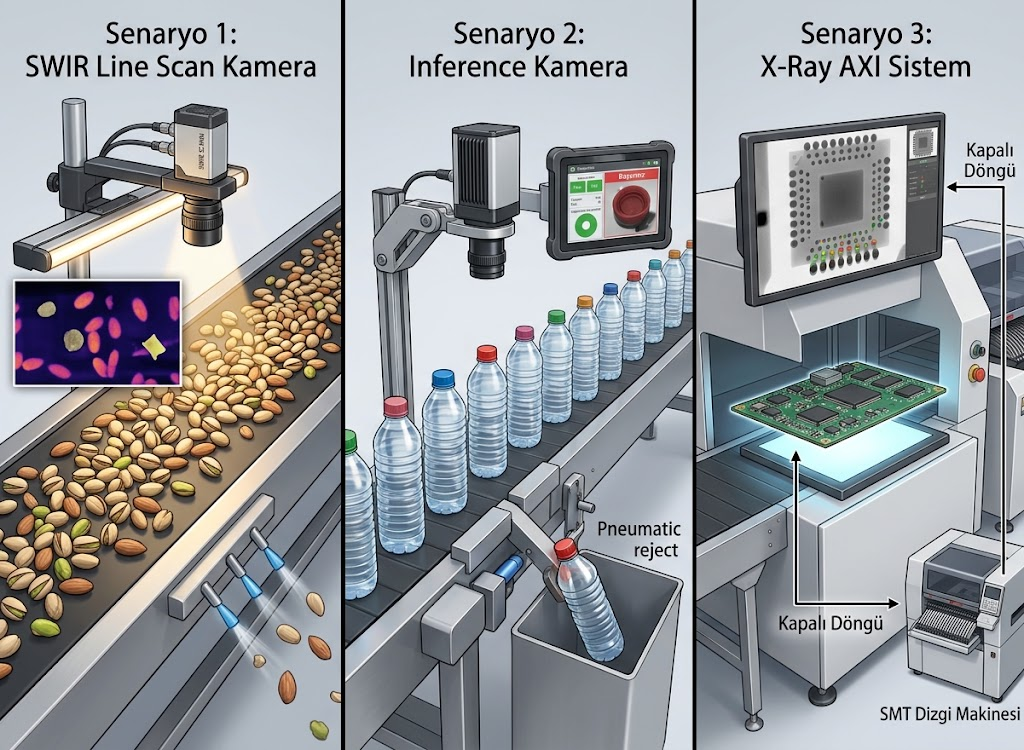

Solving the Confusion: Real-Field Examples We can solve the classification confusion by combining them with each other:
Example 1: 'Streaming + SWIR + Line Scan Camera' If you want to catch the internal rot of food on a flowing food belt; you choose a camera whose wavelength is SWIR, scanning structure is Line Scan, and processing architecture is Streaming because you will process the data on a PC due to its massive size.
Example 2: 'Inference + RGB + Area Scan Camera' If you want to produce a solution without panel costs to detect whether a part is installed upside down/right side up on an assembly line; you choose a smart AI camera that works in visible light (RGB), takes instant photos (Area Scan), and runs the model within itself (Inference).
Example 3: 'Streaming + X-Ray + Flat Panel / Area Scan Camera' If you want to inspect closed solder balls under BGA chips on an SMT line or casting voids inside an aluminum engine block; you set up a structure that passes through materials that visible light cannot pass through (X-Ray), takes high-resolution cross-sections (Flat Panel), and streams the image to the GPU server in the panel (Streaming).
Conclusion When choosing hardware in an image processing project, you should ask yourself these three questions:
What do I need to see? (Color, chemistry, stress, heat, or the inside of the material?) - Optical/X-Ray Selection
How should I scan? (Is the part stationary, flowing, is there 3D depth?) - Sensor Selection
Where should I process the data? (Inside the camera, or on the computer in the panel?) - Architecture Selection
When you accurately define these three axes, you can easily determine the most technically correct and budget-optimized hardware combination for your project.
